Description

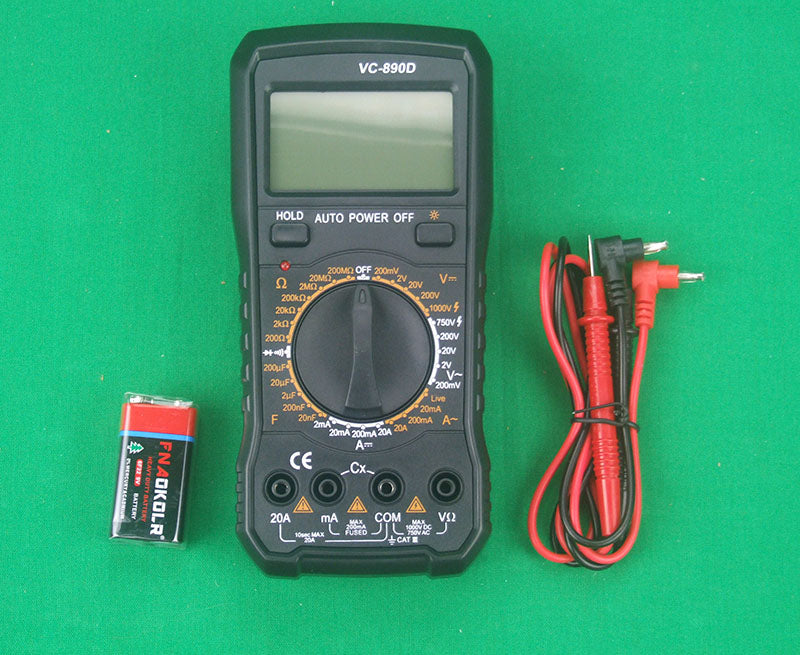

This digital multimeter is used to measure AC/DC voltages, AC/DC current, resistance, capacitance, and continuity within electronic circuits and devices.

Test leads and a 9v battery are included.

DC Voltage: 200mV/2V/20V/200V/1000V +/-(0.5%+5)
AC Voltage: 200mV/2V/20V/200V/750V +/-(0.8%+5)
DC Current: 20uA/2mA/200mA/20A +/-(0.8%+10)
AC Current: 2mA/20mA/200mA/20A +/-(1.0%+15)
Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ +/-(0.8%+25)
Capacitance: 20nF/200nF/2uF/20uF/200uF +/-(5.0%+10)
AC Frequency Response:(40-1000)Hz
Sampling frequency:3 times/s
Input Impedance:10MΩ
Fuse:200mA, 20A
Power supply:9V
